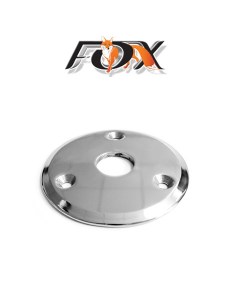

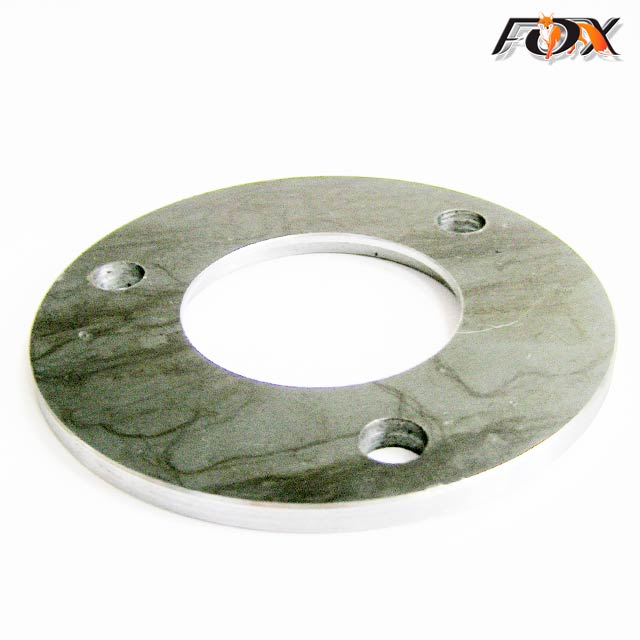

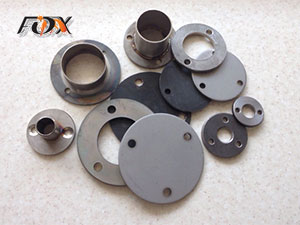

Flanges stainless steel
You can buy stainless steel flanges directly from the manufacturer TPK FOX in Kiev. The optimum value of flanges in Ukraine in terms of Price and Quality. Flanges of stainless steel - a reference part for mounting of handrails and fencing, as well as many other components for various structures, such as the stainless steel railing, stairs and fencing. We design and manufacture flanges in Ukraine, but also the installation of all stainless steel products, stainless steel and other types of fences with a combination of metal with glass and wood. Experienced specialists will select for your stairs all the necessary accessories, and then it will last you for years.
Prices please call us at
044 507-01-97, 067 324-55-11
| View | Code | Description | Note |
 |
FN-32 |
Outer diameter of 32,0 mm (mounting holes optional) |
t - 3,0 mm |
| FN-38 | Outer diameter of 38,0 mm (mounting holes optional) |
t - 3,0 mm | |
| FN-42 | Outer diameter of 42,0 mm (mounting holes optional) |
t - 3,0 mm | |
| FN-50 | Outer diameter of 50,0 mm (mounting holes optional) |
t - 3,0 mm | |
 |
FN-65 |
Outer diameter of 65.0 mm |
t - 3,0 mm |
| FN-96 | Outer diameter of 96,0 mm 3 mounting holes Ø8 mm |
t - 3,0 mm | |
 |
FN-32ХХ | Outer diameter of 32,0 mm inner diameter made to order (mounting holes optional) |
t - 3,0 mm |
| FN-38ХХ | Outer diameter of 38,0 mm inner diameter made to order (mounting holes optional) |
t - 3,0 mm | |
| FN-42ХХ | Outer diameter of 42,0 mm inner diameter made to order (mounting holes optional) |
t - 3,0 mm | |
| FN 50XX* | Outer diameter of 50,0 mm EXT. diameter 16/20/25 mm. (mounting holes optional) |
t - 3,0 mm | |
| FN-65ХХ* | Outer diameter of 65.0 mm EXT. diameter 25/32/38/42 mm. |
t - 3,0 mm | |
 |
FN 65XX* |
Outer diameter of 65 mm
|
t - 3,0 mm rectangular |
 |
PNP-32 | Outer diameter of 32 mm inner hole M8 |
|
| PNP-38 | Outer diameter of 38 mm inner hole M8 |
t - 3,0 mm | |
| PNP-42 | Outer diameter of 42 mm inner hole M8 |
t - 3,0 mm | |
 |
PNP-65 |
Outer diameter of 65.0 mm polished |
t - 3,0 mm |
| PNP-96 | Outer diameter of 96,0 mm polished inner diameter made to order 3 mounting holes Ø8 mm |
t - 3,0 mm |

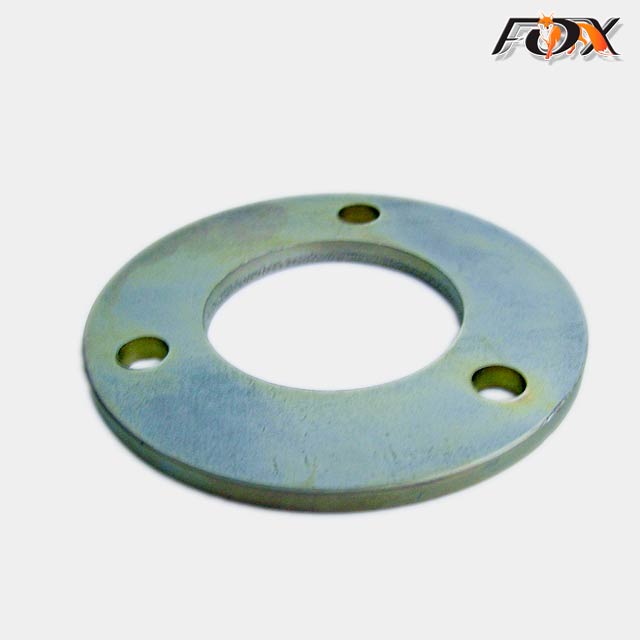

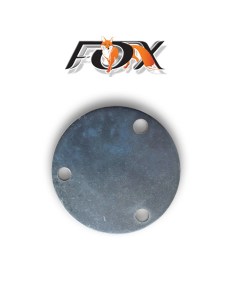

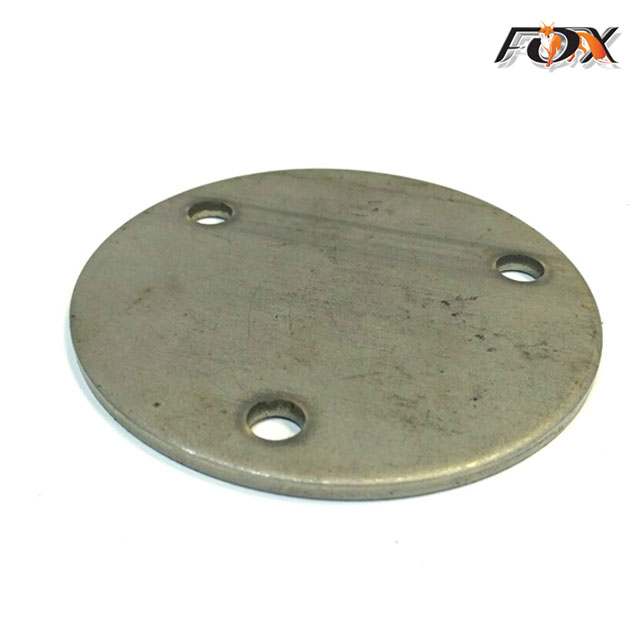

Flanges carbon steel
| View | Code | Description | Note |
 |
FU-32 | Outer diameter of 32,0 mm | t - 3,0 mm |
| FU-39 | Outer diameter of 39,0 mm | t - 3,0 mm | |
| FU-42 | Outer diameter of 42,0 mm | t - 3,0 mm | |
| FU-65 | Outer diameter of 65.0 mm 3 mounting holes Ø6 mm |
t - 3,0 mm | |
| FU-96 | Outer diameter of 96,0 mm 3 mounting holes Ø8 mm |
t - 3,0 mm | |
 |
FU-32XX* | Outer diameter of 32,0 mm EXT. diameter under the order |
t - 3,0 mm |
| FU-39XX* | Outer diameter of 39,0 mm EXT. diameter under the order |
t - 3,0 mm | |
| FU-42XX* | Outer diameter of 42,0 mm EXT. diameter under the order |
t - 3,0 mm | |
|
FU-65XX* |
Outer diameter of 65.0 mm EXT. diameter under the order 3 mounting holes Ø6 mm |
t - 3,0 mm | |
|
FU-96XX* |
Outer diameter of 96,0 mm EXT. diameter under the order 3 mounting holes Ø8 mm |
t - 3,0 mm | |
 |
FU 80*48 | Outer diameter of 80,0 mm Inner diameter of 48 mm. Galvanized 3 mounting holes Ø8 mm |
t - 3,0 mm |

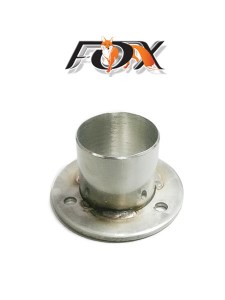

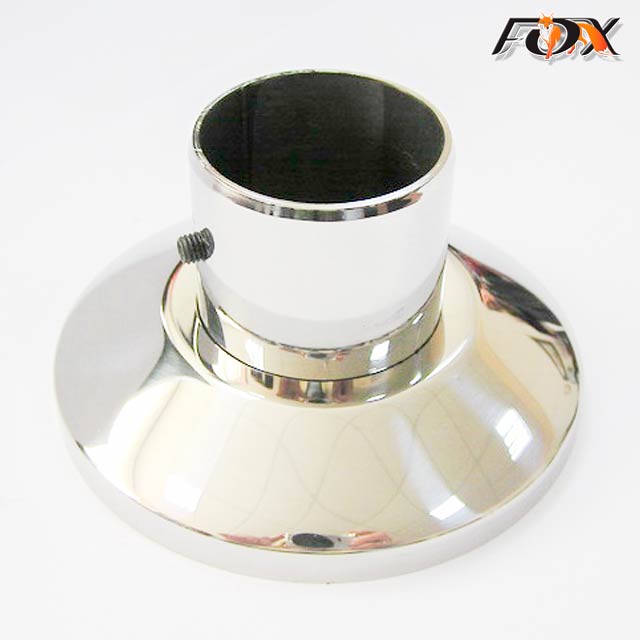

Heel
|
|||
| View | Code | Description | Note |
 |
Cdps 6501 | The heel is the internal tube diameter 32 mm, 38 mm, 42.4 mm (flange diameter 65 mm Cup n,W/ |
t - 3,0 mm |
| Cdps 9601 | The heel is the internal tube diameter 42.4 mm; 50.8 mm (flange diameter 96 mm Cup n/W) |
t - 3,0 mm | |
| Cdps 6502 | The heel is the outer pipe diameter 32 mm; 38 mm (flange diameter 65 mm Cup n,W/ |
t - 3,0 mm | |
| Cdps 9602 | The heel is the outer pipe diameter 42.4 mm; 50.8 mm (flange diameter 96 mm Cup n/W) |
t - 3,0 mm | |
Heel
|
|||
 |
SSP-65 | The heel is the internal tube diameter 32 mm, 38 mm, 42.4 mm (flange diameter 65 mm Cup n,W/ |
t - 3,0 mm |
| SSP-80 | The heel inner galvanized tube diameter 50.8 mm (flange diameter 80 mm Cup n,W/ |
t - 3,0 mm | |
| SSP-95 | The heel is the internal tube diameter 42,4 mm; 50,8 mm (flange diameter 96 mm Cup n/W) |
t - 3,0 mm | |
The connecting sleeve
|
|||
 |
SVN-42 | The connecting sleeve into the pipe D 40; mm | |
| SVN-51 | The connecting sleeve into the pipe D 50.8 mm | ||
Stairs should be not only functional and aesthetically pleasing look, but also safe. To do this you must comply with all requirements for products of this type. But that's not all. All components of ladders shall be of high quality.
Decorative flange, stainless steel is an important reference element, which is used for connection among themselves parts of valves and pipes at the production of the stairs and railings in Kiev. The flanges are made of stainless steel are resistant to corrosion and durability. The stainless steel flanges offered by us are used in the regeneration of various stair systems in the administrative, commercial and residential buildings.

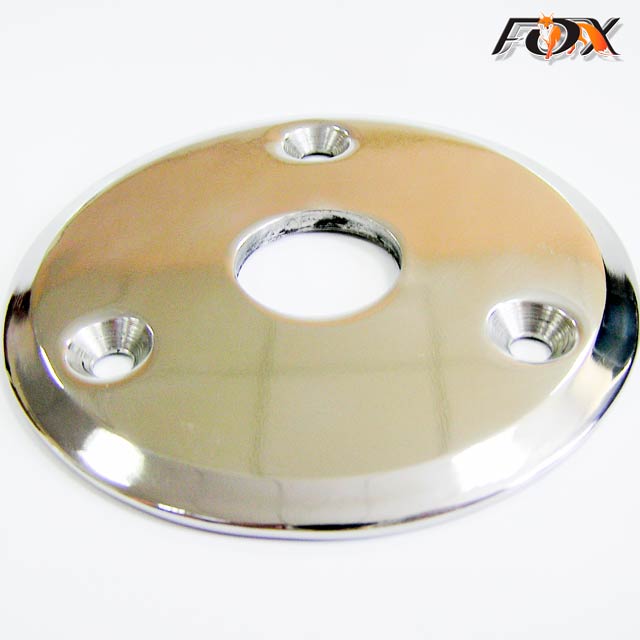

"flange" support mount is convenient that we have three holes for mounting and if loose valves can easily rotate the flange and drilled holes to gain a foothold in the right place.
For all inquiries please contact by phone: (067) 324-55-11. We will advise and give ✓good advice.
